Chinese language researchers have developed a photo voltaic cell utilizing CsSnI3 perovskite, which is thought for its distinctive section transition and close to IR emissions. By simulating the gadget with totally different electron transport layers (ETLs) and gap transport layers (HTLs), they decided that the optimum cell could possibly be created utilizing a titanium oxide (TiO2) ETL and a nickel(II ) oxide (NiOx) HTL.
Scientists from Nanjing College of Aeronautics and Astronautics in China have simulated a photo voltaic cell primarily based on an absorber utilizing a perovskite materials referred to as CsSnI3, which is an inorganic perovskite with low exciton binding vitality. , excessive absorbance coefficient, and vitality bandgap of 1.3 eV.
“The cell we designed is appropriate for industrial manufacturing, nonetheless, it requires intensive experimental work,” stated researcher Azhar Ali Haidry. pv journal.
The researchers used the SCAPS-1D photo voltaic cell capability sFOR essentially the most halfwhich is a simulation software for thin-film photo voltaic cells developed by the College of Ghent in Belgium, to simulate a number of cell designs with totally different electron transport layers (ETLs) and gap transport layers (HTLs).

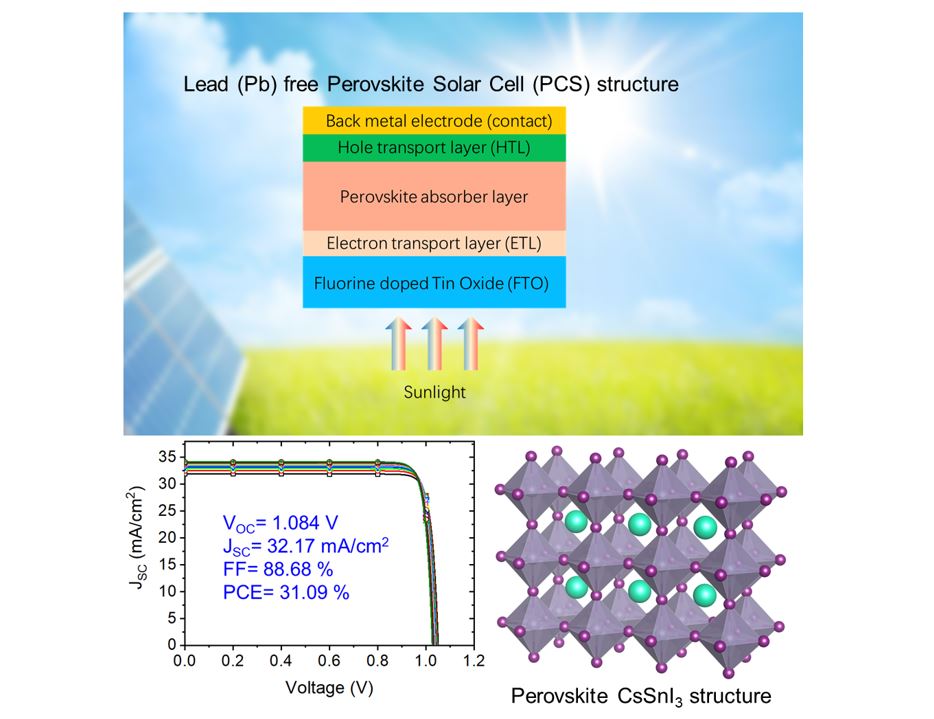

Via a collection of simulations, the Chinese language group discovered that the very best cell configuration is supplied by a tool primarily based on a substrate product of fluorine-doped tin oxide (FTO), a titanium oxide (TiO2 ) ETL, the CsSnI3 absorber, an HTL primarily based on nickel(II) oxide (NiOx), and again electrodes.
“The perovskite CsSnI3 thickness of 1,250 nm is discovered to be greatest for getting the utmost efficiency of every ETL and HTL is about 50 nm thick,” the lecturers stated. “The absorber layer with a thickness of 1200−1300 nm, TiO2, and NiO with a thickness of fifty nm are thought of favorable to acquire excessive PV effectivity.”
The most effective efficiency gadget constructed with this structure achieved an effectivity of 31.09%, an open-circuit voltage of 1.084 V, a short-circuit present of 31.17 m.A/cm2, and a fill issue of 88.68%. The researchers say that the efficiency will depend on the thickness of the absorption, the vitality bandgap of the perovskite materials, the density of the acceptor degree, and the vitality degree of the central lure of the cell.
They describe the cell in “Machine Simulation of a Skinny-Layer CsSnI3-Based mostly Photo voltaic Cell with Enhanced 31.09% Effectivity,” which was lately printed in Vitality Fuels.
“The findings present steerage for the manufacture of CsSnI3-Based mostly PV gadget within the laboratory,” stated the scientists.
