JA Photo voltaic is collaborating with Chinese language scientists to check a brand new electrical heating system for photo voltaic panels that makes use of warmth from uncovered panels to take away snow. The system begins through the use of the grid electrical energy, however then depends on the warmth impact to withstand uniform warmth all through the PN junction space of the snow-covered panel.
Chinese language scientists have developed a brand new snow elimination system for off-grid and grid-connected PV methods that makes use of little or no grid electrical energy.
The “domino-like snow elimination system” (DSRS) makes use of electrical energy from uncovered PV modules to take away snow from photo voltaic arrays, by way of rope.
“With excessive snow elimination effectivity, it makes use of virtually no energy consumption,” stated researcher Wen Liu. pv journal. “The snow elimination precept has been confirmed to haven’t any unfavorable impact on the efficiency of PV modules by way of experiments in collaboration with the Chinese language PV module producer JA Photo voltaic.”
The researchers say that the string that originally removes the snow offers energy for the subsequent snow-covered strings, in a sequence they liken to falling dominoes. The system makes use of solely grid electrical energy with the primary panels, as a result of the PV electrical energy is liable for the next snow elimination.
The DSRS is linked to every of the PV system strings by way of tee-type MC4 connectors and PV cables. It makes use of the thermal impact of resistance to evenly warmth all the PN junction space of the PV modules.
“Warmth is transferred to the snow layer by way of the EVA movie and the tempered PV glass, which causes the snow to soften,” the Chinese language workforce stated, noting that the system depends on a most energy level tracker ( MPPT) algorithm that launches the elimination course of with excessive use of daylight.
“The snow melting course of takes place on the floor of the PV modules, which is taken into account as a one-dimensional warmth switch perpendicular to the floor of the PV modules,” stated the scientists.
The researchers examined a system prototype in an actual winter snow-cover surroundings and located that it may obtain “good” snow elimination in environments with, a minimal angle with an inclination of 27 levels, a minimal temperature of -14.8 C, and a minimal fluctuant photo voltaic radiation of 248 W/m2 in an off-grid mode.
“The DSRS can cope with several types of snow, whose density ranges from 121.05 kg/m3 to 480.10 kg/m3 with a thickness various between 15.5 mm and 32.5 mm,” they defined. .
They stated the system might value between CNY 0.17 ($0.025)/W and CNY 0.29 CNY/W put in in PV methods from 10 kW to 30 kW. The payback interval is estimated between 2.9 and 4.3 years.

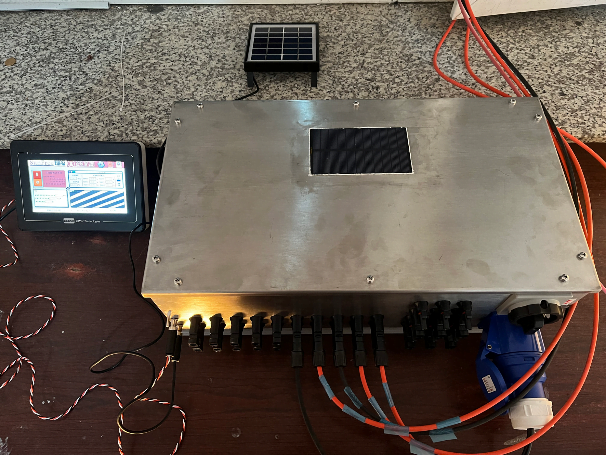

“The bill-of-material (BOM) value for this extra field is lower than $500 and its set up can solely be completed with just a few further energy cables and three port connectors, so the it prices much less,” stated Liu. “To the perfect of my data, there hasn’t been any inexpensive answer for snow elimination to this point and I consider this expertise will be extensively used.”
The analysis workforce offered the system in “A novel domino-like snow elimination system for rooftop PV arrays: Feasibility, efficiency, and financial advantages,” which was just lately revealed in Utilized Vitality. The group contains teachers from the College of Science and Know-how of China, the Xiong’an Institute of Innovation, and JA Photo voltaic.
“This paper presents a scientific work across the feasibility, efficiency, and financial advantages of the domino-like snow elimination system and proves that it is a superb answer for snow elimination in modules of PV and has nice potential to enhance the deployment of PV the place snow covers for a number of months of winter,” the workforce concluded.
