Scientists within the Netherlands have developed a brand new crystalline photo voltaic cell based mostly on poly-SiOx passivating contacts. Poly-SiOx tech ends in a 20% effectivity score, however 4T tandem perovskite-silicon photo voltaic cells based mostly on poly-SiOx cells can attain an effectivity of 28.1%, and 2T tandem perovskite-silicon units can hit 23.2%.
A analysis group led by Delft College of Expertise within the Netherlands produced crystalline silicon photo voltaic cells based mostly on carrier-selective passivating contacts (CSPCs) manufactured from polysilicon and silicon monoxide (poly-SiOx). Qhey declare that the expertise can be utilized for four-terminal (4T) and two-terminal (2T) tandem perovskite silicon photo voltaic cells.
“Such CSPCs encompass doped poly-Si, blended with carbon or oxygen, deposited on an ultra-thin SiOx layer, ready by a wet-chemical course of, thermal oxidation, UV/O3 course of, or low-temperature plasma oxidation,” the scientists stated, referring to the brand new passivating contact. “The optoelectronic properties of poly-SiOx relying on the oxygen content material.”

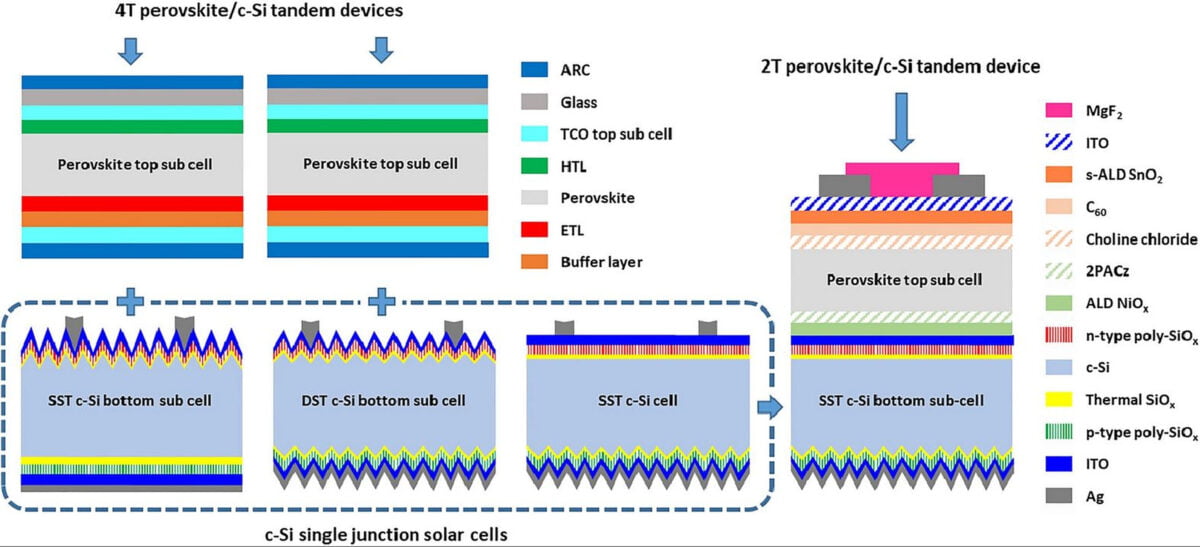

The scientists constructed the cell utilizing silicon dioxide (SiO2) layer deposited by plasma-enhanced chemical vapor deposition (PECVD). Additionally they use n-type and p-type poly-SiOx passivating contacts, which they deposited on thermal oxide with a dual-stack layer of 10-nm thick intrinsic amorphous silicon (a-Si) layer, via a low-pressure chemical vapor deposition (LPCVD) course of, and 20-nm thick hydrogenated a-SiOx layer from the PECVD course of.
“Silane (SiH4), carbon dioxide (CO2), and hydrogen (H2) gases are used as a supply to deposit this poly-SiOx passivating contacts,” they stated, referring to the manufacturing course of. “Phosphine (PH3) and diborane (B2H6) gases are used as doping sources for n-type and p-type poly-SiOx passivating contacts, respectively. “
The workforce additionally used display screen printing to equip the cell with low-temperature Ag-based back and front steel contacts. The very best photo voltaic cell constructed with this configuration and a p-type wafer achieved an influence conversion effectivity of 20.47%, an open circuit voltage of 95 mV, a short- circuit present of 36.68 mA / cm.2, and a fill issue of 80.33%. The diffusivity of hydrogen in p-type poly-Si, alternatively. is decrease than that of n-type, which prevents the buildup of extra hydrogen across the oxide which might degrade the passivation high quality.
When examined in tandem with a beforehand developed perovskite photo voltaic cell with an effectivity of 19.7%, the brand new cell respectively contributed efficiencies of 28.1% and 23.2% to the 4T and 2T cells.
The analysis workforce launched its findings in “Crystalline silicon photo voltaic cells with skinny poly-SiOx carrier-selective passivating contacts for perovskite/c-Si tandem purposes,” lately printed in Advances in Photovoltaics. The group consists of teachers from Eindhoven College of Expertise and the Netherlands Group for Utilized Scientific Analysis (TNO).
TNO can be presently growing a four-junction (4T) semi-transparent perovskite-silicon tandem photo voltaic cell. It really works in collaboration with the Solliance consortium, which incorporates Delft College of Expertise, Eindhoven College of Expertise, and Belgian analysis institute Imec. The system achieved a 30.1% energy conversion effectivity in September.
A Dutch-German consortium led by TNO can be making an attempt to commercialize 2T perovskite-silicon tandem photo voltaic cell tech underneath FIT4Market, a four-year analysis venture.
