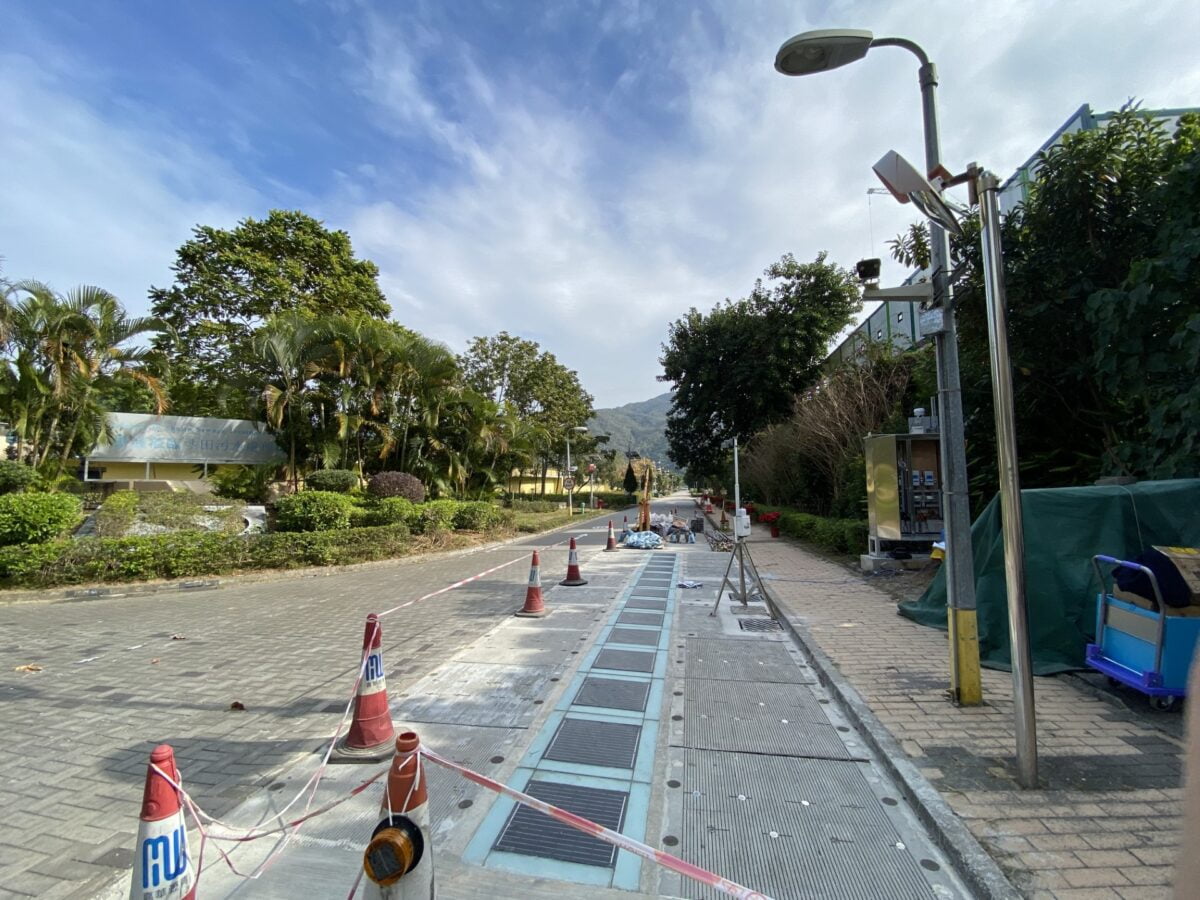

Researchers on the Hong Kong Polytechnic College have designed a photovoltaic pavement (PVP) for city environments.
“We suggest a two-dimension finite ingredient mannequin for PPV module electrical and thermal efficiency with floor affect,” stated researcher Tao Ma pv journal. “We carried out lab checks to investigate the anti-skid function and vitality output of the pre-fabricated module, in addition to parametric evaluation of module design and surrounding soil materials.
The scientists carried out numerical and experimental research on the potential built-in thermal and electrical efficiency of a PVP positioned in Hong Kong. The set up relies on monocrystalline photo voltaic modules with 20% effectivity and an influence output of 31.5 W. PVP makes use of tempered glass sheets on the back and front sides to enhance structural power and safety.
“The patterns are added to the entrance floor of the module for greater anti-skid properties in comparison with resin,” the researchers stated. “The damp layer with backfilling supplies of air and epoxy resin (EP) is used as a substitute of the hole construction, for higher assist.”
Asphalt concrete is chosen because the floor soil, and the enter parameters together with climate, web site situation, PV module output, module floor temperature, and the highway atmosphere temperature are chosen.
The scientists discovered that PVP can attain a possible electrical output of 0.68 kWh/m2 and an effectivity of 14.71%. They stated that filling with epoxy resin can cut back the annual most floor temperature of the PVP module by 8.4%, and famous that the typical mitigation of the warmth island impact can attain 13.16 C.
The analysis staff carried out different simulations for PVPs in Shanghai and 255 different cities in China. They discovered that the electrical energy potential might vary from 0.70 kWh/W to 1.83 kWh/W, with cities in western and northeastern China exhibiting greater PV technology potential.
“The price of the pavement has not been estimated up to now, however industrial manufacturing is being thought-about,” Ma stated.
The researchers introduced their new expertise in “Simulation and experimental examine of the vitality efficiency of a pre-fabricated photovoltaic pavement,” which was just lately printed in Utilized Vitality.
In 2019, researchers at Hong Kong Polytechnic College developed PV ground tiles designed for pavements and biking tracks. The tiles have been examined on a ‘inexperienced deck’ in Hong Kong and confirmed passable photo voltaic vitality conversion, anti-slip efficiency, warmth resistance, and power.
