German scientists evaluated the efficiency of photo voltaic modules on the balcony related to an e-bike battery and located that this mixture supplied a secure and steady operation for 3 days. They examined two system architectures primarily based on passive and lively hybridization and said that each system designs supplied passable outcomes.
Scientists from the Offenburg College of Utilized Sciences in Germany intend to combine a commercially out there lithium-ion battery for e-bikes with a balcony PV system with the purpose of assessing the potential financial savings and development in self-consumption charges.
Their methodology consists of connecting the battery to the system with a small quantity of further parts and with none modification, which they are saying lowers the price of the system. Additionally they decided that, within the proposed system configuration, the microinverter doesn’t “know” that it’s related to a battery, prompting the researchers to research the usage of passive or lively measures to keep away from the utmost battery energy level (MPP) monitoring.

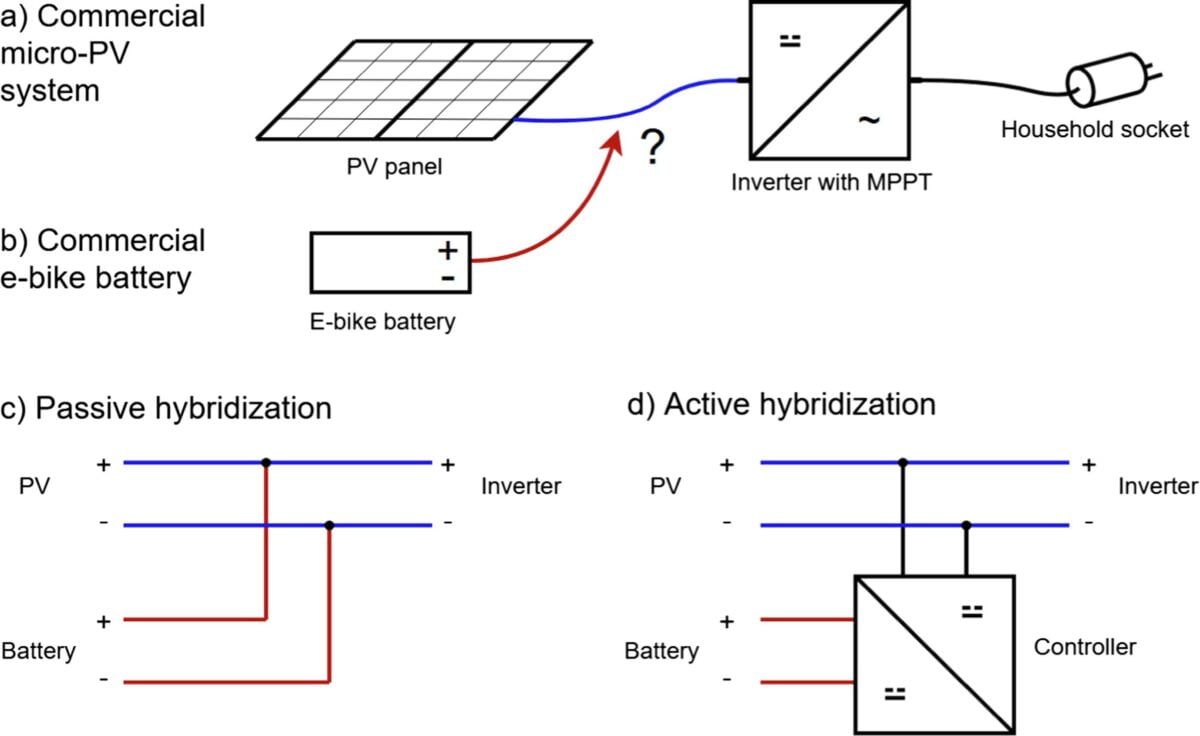

Because of this, the analysis group proposed two totally different system architectures, which it calls passive hybridization or direct connection and lively hybridization or lively coupling.
At first, the battery is related to the panel and not using a microinverter or cost controller in between. “It’s primarily based on the matching of the PV and the battery’s respective present and voltage traits,” the scientists stated, noting that the system is self-regulated and no battery administration system is required. “Throughout battery charging, the system voltage rises and drives the PV in direction of zero present when the battery is totally charged. Throughout discharge, a diode protects the PV from very low voltage stage.
The lively structure refers back to the connection of a microinverter and a controller between the battery and PV methods, which permits the lively management of voltages and currents whereas regulating the interplay between the parts. “Right here, one aspect of a controller is positioned in parallel connection between PV modules and inverter,” the teachers stated. “The battery is related to the opposite aspect of the controller.”
The passive design is cheaper than the lively one but additionally much less environment friendly than the MPP-tracked setups, the group stated.
Teachers use real-time information and high-resolution artificial load profiles to conduct a collection of simulations through Simulink (MATLAB) to evaluate the efficiency of each methods over a one-year interval. They assume that the system consists of three collection related PV modules every with an output of 100 W, a 36 V electrical bicycle lithium-ion battery with a nominal vitality of 555 Wh and a nominal capability of 15.5 Ah, and a 250 W microinverter with an MPP tracker.
They in contrast the efficiency of two architectures in a balcony PV system with the identical traits however with out storage. “The three methods have been examined on totally different days with totally different meteorological circumstances,” additionally they defined. “For AC and DC measurements, information is recorded in one-second increments. Time information is recorded in ten-minute increments.”
pv journal print version
Within the newest difficulty of pv journal we flip the highlight to European photo voltaic with a complete overview of the state of the PV trade within the area’s primary markets and a take a look at laws geared toward driving a photo voltaic rooftop increase. We additionally discover the problem of building a photo voltaic panel recycling trade in Australia, the place trade gossip is not serving to issues.
Via its evaluation, the German crew concluded that the lively and passive methods are technically viable as a result of they’re able to present steady and secure operation for 3 days. “The passive hybrid system is easy in idea and permits steady operation of the inverter which is beneficial for offering base-load protection within the house,” it said. “The lively system options intermittent inverter operation however with a better system effectivity.”
The scientists stated that the monetary viability of the 2 mission designs ought to be additional investigated, since the price of the battery should still signify an impediment that may be overcome, in the long run, by rising the scale within the balcony PV system. “For a variety of use, the system setup must be tailored for extra flexibility, which can want to incorporate battery communication,” they concluded.
Their findings are introduced within the paper “Integrating a lithium-ion battery right into a micro-photovoltaic system: Passive versus lively coupling architectures,” revealed in Photo voltaic Vitality.
