German scientists evaluated the efficiency of photo voltaic modules on the balcony related to an e-bike battery and located that this mix offered a secure and steady operation for 3 days. They examined two system architectures primarily based on passive and lively hybridization and acknowledged that each system designs provided passable outcomes.
Scientists from the Offenburg College of Utilized Sciences in Germany intend to combine a commercially accessible lithium-ion battery for e-bikes with a balcony PV system with the goal of assessing the potential financial savings and development in self-consumption charges.
Their methodology consists of connecting the battery to the system with a small quantity of further elements and with none modification, which they are saying lowers the price of the system. Additionally they decided that, within the proposed system configuration, the microinverter doesn’t “know” that it’s related to a battery, prompting the researchers to analyze using passive or lively measures to keep away from the utmost battery energy level (MPP) monitoring.

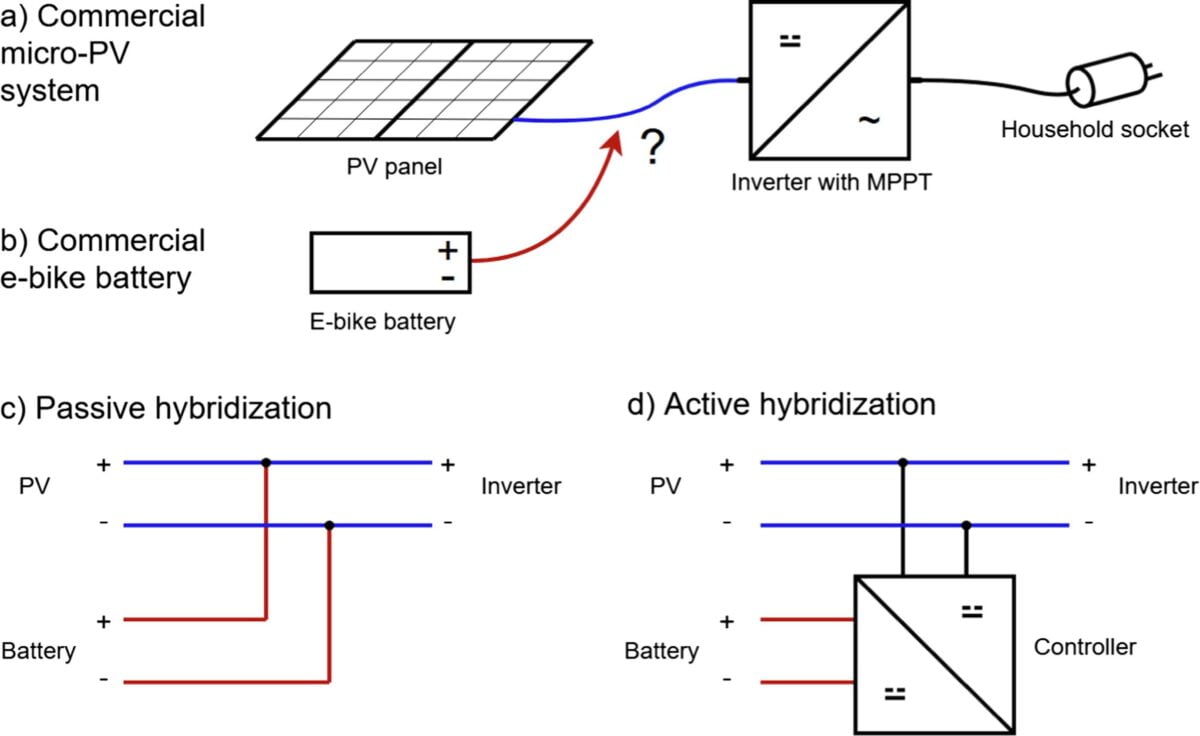

For that reason, the analysis group proposed two totally different system architectures, which it calls passive hybridization or direct connection and lively hybridization or lively coupling.
At first, the battery is related to the panel with no microinverter or cost controller in between. “It’s primarily based on the matching of the PV and the battery’s respective present and voltage traits,” the scientists stated, noting that the system is self-regulated and no battery administration system is required. “Throughout battery charging, the system voltage rises and drives the PV in the direction of zero present when the battery is totally charged. Throughout discharge, a diode protects the PV from very low voltage stage.
The lively structure refers back to the connection of a microinverter and a controller between the battery and PV methods, which permits the lively management of voltages and currents whereas regulating the interplay between the elements. “Right here, one aspect of a controller is positioned in parallel connection between PV modules and inverter,” the lecturers stated. “The battery is related to the opposite aspect of the controller.”
The passive design is cheaper than the lively one but in addition much less environment friendly than the MPP-tracked setups, the group stated.
Lecturers use real-time information and high-resolution artificial load profiles to conduct a collection of simulations through Simulink (MATLAB) to evaluate the efficiency of each methods over a one-year interval. They assume that the system consists of three collection related PV modules every with an output of 100 W, a 36 V electrical bicycle lithium-ion battery with a nominal power of 555 Wh and a nominal capability of 15.5 Ah, and a 250 W microinverter with an MPP tracker.
They in contrast the efficiency of two architectures in a balcony PV system with the identical traits however with out storage. “The three methods had been examined on totally different days with totally different meteorological situations,” additionally they defined. “For AC and DC measurements, information is recorded in one-second increments. Time information is recorded in ten-minute increments.”
By means of its evaluation, the German group concluded that the lively and passive methods are technically viable as a result of they can present steady and secure operation for 3 days. “The passive hybrid system is easy in idea and permits steady operation of the inverter which is beneficial for offering base-load protection within the residence,” it acknowledged. “The lively system options intermittent inverter operation however with the next system effectivity.”
The scientists stated that the monetary viability of the 2 challenge designs needs to be additional investigated, since the price of the battery should symbolize an impediment that may be overcome, in the long run, by growing the scale within the balcony PV system. “For a variety of purposes, the system setup needs to be tailored for larger flexibility, which can want to incorporate battery communication,” they concluded.
Their findings are offered within the paper “Integrating a lithium-ion battery right into a micro-photovoltaic system: Passive versus lively coupling architectures,” printed in Photo voltaic Vitality.
