Researchers at South Korea’s Institute of Supplies Science, QCells, and Korea Aerospace College have produced versatile, clear photo voltaic cells primarily based on hydrogenated amorphous silicon (a-Si:H). They developed strategies to optimize cells for building-integrated photovoltaics (BIPV) and bifacial purposes.

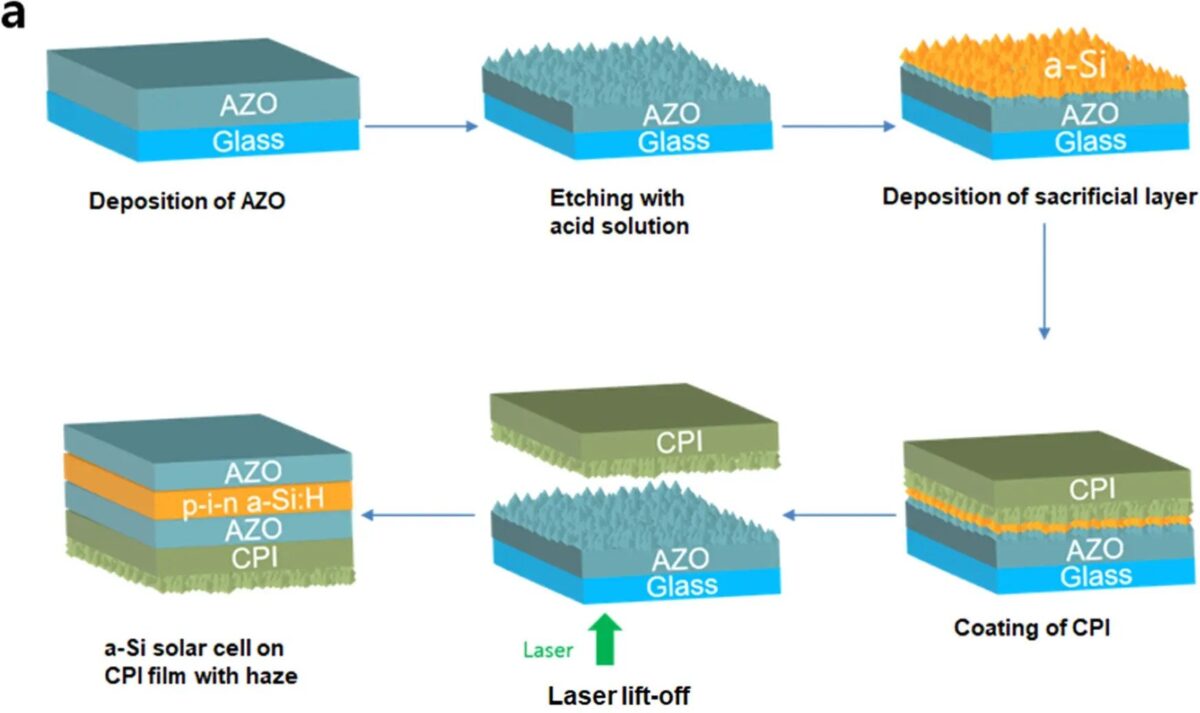

The teachers constructed a 20 micrometer cell for the BIPV system with a substrate of glass and colorless polyimide (CPI), an electron transport layer manufactured from aluminum-doped ZnO (AZO), and hydrogenated amorphous silicon (a-Si :H) absorber. They initially improved the front-incidence photocurrent through the use of a laser lift-off (LLO) methodology that purportedly transfers light-scattering constructions to the CPI whereas avoiding thermal injury.
“The CPI movie is separated from the glass substrate utilizing the LLO methodology, in keeping with which the sacrificial a-Si:H layer is eliminated by laser via vaporization,” the scientists defined. “Thus, the laser energy should be optimized to attenuate the optical loss.”
With the LLO energy optimized at 196.5 milliwatt, the cell reveals a median seen transmittance (AVT) of 88.3% for the CPI substrate, in comparison with 89.5% for the glass substrate.
“The extent of sunshine scattering in T-CPI movies will be managed by various the AZO etching time,” the researchers stated. The short-circuit present density of the optimized cell elevated from 9.11 mA/cm2 is 9.81 mA/cm2, whereas its effectivity for entrance incidence elevated from 4.87% to five.34%. Its effectivity for again incidence is initially as little as 3.63%.
The workforce optimized the rear-incidence photocurrent by introducing a twin n-type rear window layer. This “lowers optical reflection loss and facilitates electron transport on the interface, which reduces service recombination loss for learn irradiance,” they stated. The cell optimized for bifacial operation confirmed an AVT of 36.9% and the rear-to-front effectivity ratio elevated to 86%.
The scientists shared their findings in “Versatile and clear thin-film light-scattering photovoltaics relating to fabrication and optimization for bifacial operation,” which was lately revealed in npj Versatile Electronics.
