Danish researchers investigated the potential of PV programs and their affect on the underlying farm in three totally different agrivoltaic tasks, together with vertical bifacial optimally tilted, horizontal single-axis monitoring, and vertical bifacial setup. Additionally they calculated the potential for agrivoltaic in every area of the European Union and located that appropriate areas will not be evenly distributed.
Researchers at Aarhus College in Denmark investigated various kinds of agrivoltaic configurations and located vital variations in potential throughout Europe.
They take into account two totally different traits of the opportunity of agrivoltaic programs: the potential of the PV system and their affect on the underlying farm. They targeted on three totally different setups: optimally tilted, horizontal single-axis monitoring, and vertical bifacial.
The group developed a mannequin that simulates the shadows of the photo voltaic panels and the bottom, which permits correct evaluation of the discount in manufacturing output because of the absence of the shadow at every simulated time, as a substitute of solely contemplating the a complete loss issue.
They discovered that the axis monitoring setup produced the next energy yield, however when contemplating the each day technology patterns of the totally different configurations, the vertical bifacial produced the next price-weighted yield of electrical energy for some nations.
Their goal is to take care of at the very least 80% of the land appropriate for crops. On this case, for high-radiation demand vegetation, the annual electrical energy yield for tilt and bifacial vertical configurations is identical and restricted to 30 kWh/m.2. This corresponds to a capability density of about 30 W/m2which they used to estimate the potential of argivoltaics in numerous areas of Europe.
“The potential for agrivoltaic is large as a result of the electrical energy generated by agrivoltaic programs can produce 25 instances the present electrical energy demand in Europe,” the researchers mentioned in “Comparative evaluation of photovoltaic configurations for agrivoltaic programs in Europe.,” which was revealed in Advances in Photovoltaics.

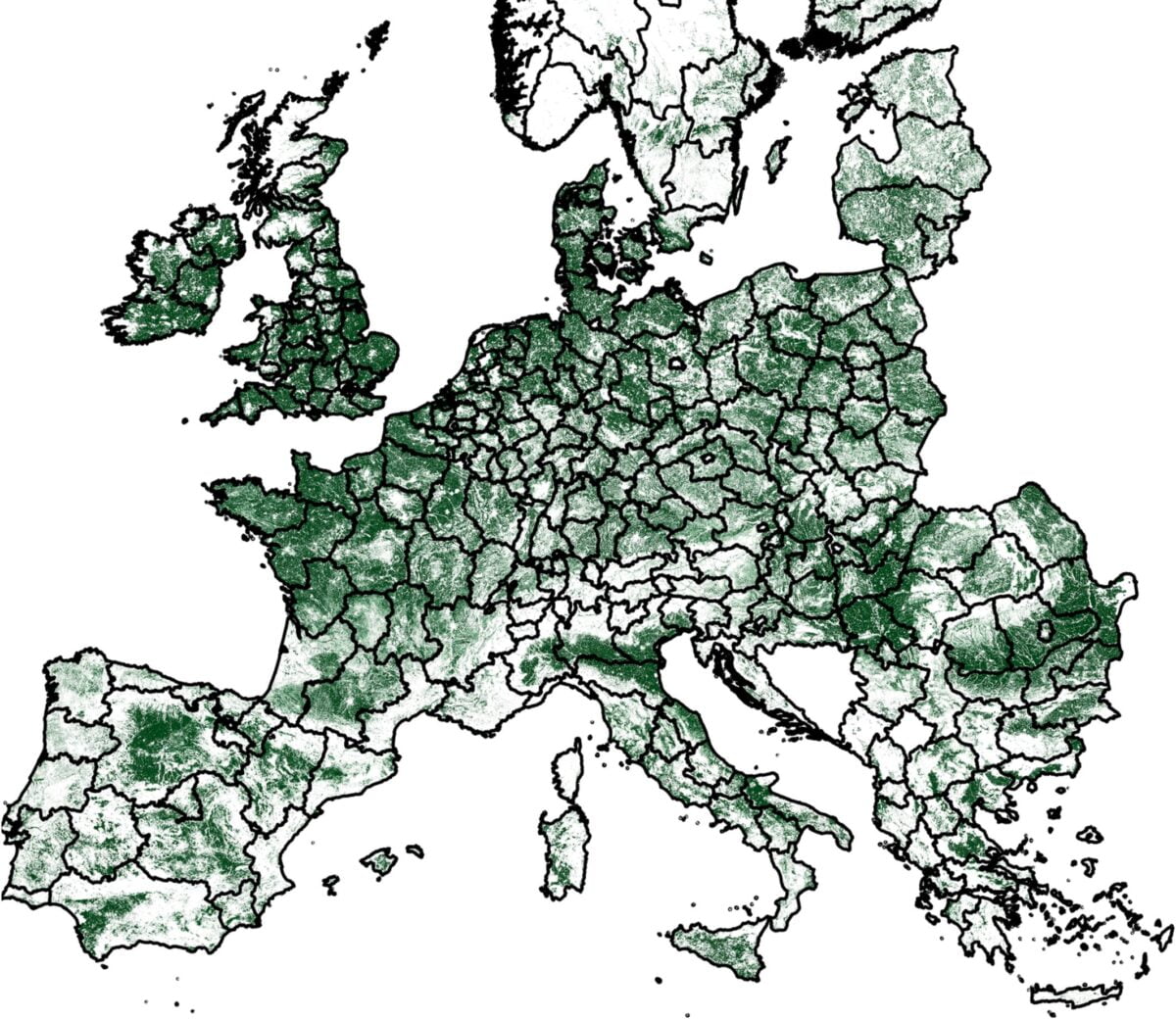

In complete, the potential capability for agrivoltaic in Europe is 51 TW, leading to an electrical energy yield of 71,500 TWh/12 months, the researchers calculated. Their evaluation additionally discovered that the acceptable space is distributed erratically throughout Europe, with some nations, comparable to Norway, having as little as 1% of their complete space appropriate for agrivoltaics. In different nations, comparable to Denmark, this share is as excessive as 53%.
