Scientists from the US Nationwide Renewable Vitality Laboratory (NREL) and the College of Louisville have developed a revolutionary photo voltaic cell utilizing yttrium-doped tin oxide nanoparticles. The innovation improves cost seize and general cell efficiency.
Scientists from NREL and the College of Louisville have constructed an inverted perovskite photo voltaic cell with an electron transport layer (ETL) primarily based on yttrium-doped tin oxide (SnO2) nanoparticles.
“The cell is appropriate for manufacturing, and there’s a startup from Louisville – SoFab Inks – that does simply that,” stated researcher Thad Druffel. pv journal. “The award of $200,000 from [US Department of Energy] within the perovskite photo voltaic startup problem.”
The researchers stated ETLs primarily based on SnO2 provide low temperature answer processability, good photostability, excessive chemical stability, excessive digital conductivity, good optical transparency, broad band hole, and favorable band lining with perovskite.
“Moreover, the broad and tunable optical band hole and deep conduction band (−4.3 eV) of SnO2 lead to one of the best cost. injection,” they stated.
They synthesized yttrium-doped SnO2 nanoparticles to enhance their digital properties whereas sustaining the low-temperature annealing circumstances required for the manufacturing of perovskite cells on substrates fabricated from Polyethylene terephthalate (PET).

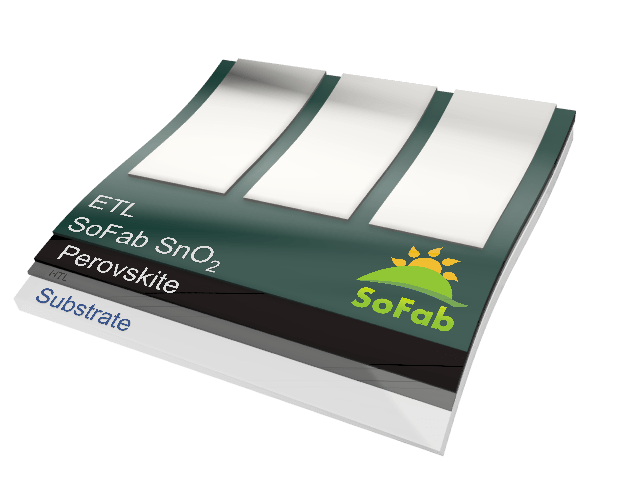

The cell comprises a pin structure and an lively space of 0.1 cm2. It depends on a versatile substrate fabricated from PET and indium tin oxide (ITO), a gap transport layer (HTL) fabricated from poly-triarylamine (PTAA), an interfacial layer fabricated from PFN polymer, the perovskite absorber , the yttrium-doped. Sno2 ETL, a bathocuproine (BCP) buffer layer, and a silver (Ag) steel contact.
“PTAA, PFN, perovskite, and SnO2 The layers are positioned in a step edge coating technique, whereas BCP and silver had been deposited on thermal evaporation,” stated the lecturers.
The group examined a number of cells below customary lighting circumstances and located that they achieved an influence conversion effectivity of 16.5%, an open-circuit voltage of 1.08 V, a short-circuit present of twenty-two.40. mA/cm2, and a fill issue of 68.4%. As a method of comparability, a reference gadget with ETL with out yttrium doping reached an effectivity of 14.3%, an open-circuit voltage of 1.01 V, a short-circuit present of twenty-two.40. mA/cm2and a fill issue of 63.3%.
The scientists attribute the elevated cell efficiency to the novel design of the SnO2 ETL.
“it materials that Owns small value, scalability, and manufacturing benefits over conventional natural ETLs that may enhance the competitor to business perovskite photo voltaic modules,” they concluded.
They launched the gadget to “Excessive Performing Inverted Versatile Perovskite Photo voltaic Cells by Answer Part Deposition of Yttrium-Doped SnO2 Direct to Perovskite,” which was not too long ago revealed in Utilized Vitality Supplies.
