Qatari researchers are trying on the diploma to which cleansing robots scale back the yield of PV vegetation within the shade they create on the panels. They discovered that the module orientation has a big impact on the shadow impact.
Scientists on the Qatar Atmosphere and Power Analysis Institute (QEERI), a part of Hamad Bin Khalifa College (HBKU), investigated the impact of shadow created by transferring cleansing robots on the efficiency and yield of utility scale photovoltaic techniques. plant
“Cleansing robots are actually utilized in nearly all PV vegetation within the desert and, normally, they run through the day, making a transferring shadow on the PV modules,” the corresponding writer of the analysis, Benjamin Figgis, talking. pv journal. “We’re doing a discipline research in Qatar to measure how the shadow of the robotic impacts the PV output in actual time, and to find out if sizzling spots are created.”

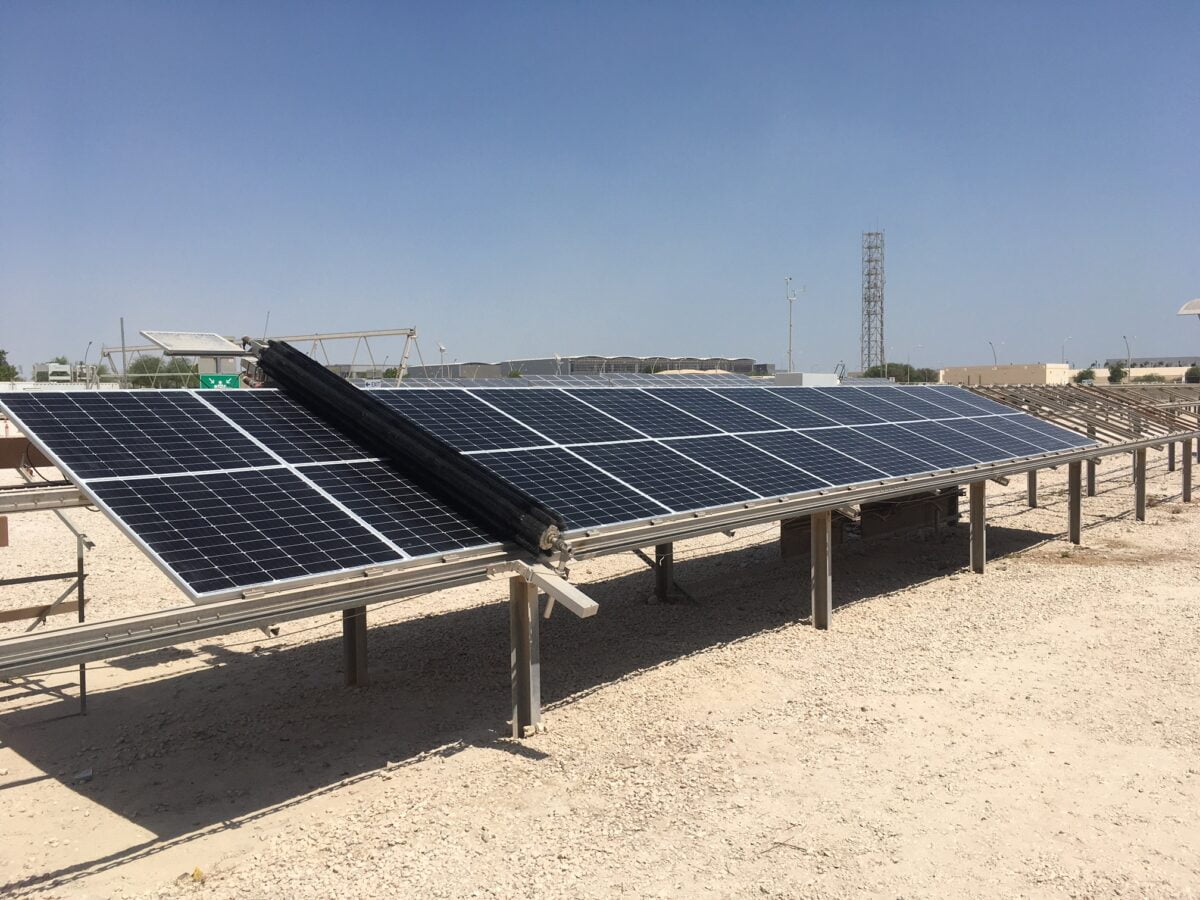

Scientists performed a sequence of exams below clear sky situations utilizing the business robotic Nomadd Desert Photo voltaic Options on totally different PV array configurations on the QEERI testing facility in Doha, Qatar, with tilt angle of twenty-two levels. They take into account three foremost components: module design, module orientation, and robotic pace.
They decided that the DC present and voltage of the PV string was recorded at 4 Hz, from a couple of minutes earlier than the robotic went by means of a couple of minutes. The present is measured by passing the string DC cable by means of a ten A/75 mV shunt resistor and sensing the voltage drop with the identical datalogger. The string DC energy (P) is obtained by multiplying the voltage and present values.
They defined that the pace of response of the inverter is a foremost crucial issue, as a result of the robotic can simply transfer the modules. In addition they observed that the robotic wanted the identical time to traverse the thread no matter the kind of module or orientation.
By their evaluation, the lecturers discovered that the module orientation has an incredible influence on the shadow impact.
“Within the scene, the string present and the ability dropped considerably when the robotic handed, whereas the strings with the portrait modules had been nearly unaffected,” mentioned Figgis. “That is effectively defined by the format of the modules of the bypass diodes. Fortuitously, there are not any indicators of cell sizzling spots, though the bypass diodes warmth up when the robotic stops for a while.”
Figgs additionally defined that, particularly, the inverter’s most energy level tracker (MPPT) algorithm struggles to deal with the robotic’s transferring shadow – typically it will increase the voltage of the string, typically it decreases it, and it takes a minute to the MPP will probably be rebuilt afterwards. the robotic left the row. “For the set-up we examined, one robotic move lowered the photo voltaic PV vitality yield by nearly 0.16% for panorama modules. With portrait modules the loss was nearly zero,” he added. which is defined.
The researchers additionally discovered that the ability discount was better for full-cell modules than for half-cut panels, and that heating of the bypass diode in a module occurred when the robotic stopped the module, however not whereas the robotic was transferring. .
“The important thing classes are that if a PV plant is designed with cleansing robots in thoughts, their shading losses could be minimized by the format of the portrait module, which is normally the case with single-axis trackers ,” Figgs concluded. “For panorama techniques, it is best to run robots at night time, even earlier than the dew has shaped.”
The analysis findings seem within the research “Impact of cleansing the transferring shadow of the PV string robotic,” revealed in Photo voltaic Power.
The identical group revealed in January a research that offered an evaluation of the diploma to which cleansing robots might threaten the bodily integrity of photo voltaic panels. They discovered that the cleansing machines had little or no impact and that modules of the identical dimension tended to indicate roughly the identical quantity of vibration.
