The potential vitality of the apocryphal Seventeenth-century apple that hit Isaac Newton on the top helped create his principle of gravitation. It wasn’t till the early twentieth century, nonetheless, that the primary main gravity-based battery was developed in Switzerland, a pumped-storage hydroelectricity system.
A “gravity battery” shops the potential vitality of a fabric or liquid utilizing top and weight. With pumped hydro, water is pumped into the upper of the 2 reservoirs when vitality is considerable, to later be launched downstream by means of a turbine.
Pumped hydro is the most typical utility scale storage expertise and, in accordance with Australian Nationwide College Professor Andrew Blakers overview in Progress in Power, includes 96% of worldwide storage capability and 99% of storage vitality quantity.
Whereas lithium-ion batteries and different electrochemical programs have overcome short-term vitality storage, their costly uncooked supplies can’t present the long-term vitality storage (LDES) required for vitality switch. . Solely LDES can totally cowl the intermittent cycles of photo voltaic and wind energy, filling the gaps for twenty-four/7 renewable vitality. Analyst McKinsey & Firm initiatives LDES expertise might attain 1.5 TW to 2.5 TW of capability by 2040.
Pumped hydro, nonetheless, requires important capital and infrastructure and is proscribed by topography appropriate for reservoirs of various ranges. The initiatives even have a major impression on the surroundings. These limitations are driving innovation in gravity battery improvement, and Oliver Schmidt, an Imperial School London researcher and founding father of analysis hub Storage Lab, describes scalable LDES as “the holy grail.”
The principle requirement of gravity batteries is weight, and that may be low-cost. “This is the reason I believe gravity-based storage can play an enormous position, if somebody can discover a method to replicate the idea of pumped hydro in a extra distributed means, ” stated Schmidt.
Switzerland’s Power Vault often is the furthest down the monitor. In March 2022, with US-based Atlas Renewable Power and a $50 million stake from South Korean smelter Korea Zinc, Power Vault began a 25 MW/100 MWh venture close to Shanghai.
The preliminary “EVx” system goals to elevate 30-ton blocks utilizing a six-arm crane. Power Vault Chief Business Officer Marco Terruzzin stated pv journal the system developed to look extra like a multi-storey automobile park, with 35-ton blocks as a substitute of vehicles, every working systematically to retailer and launch vitality.
Power Vault and Mexican cement enterprise Cemex have developed blocks that may use native supplies together with soil, recycled coal ash, waste mine tailings, or useless wind turbine blades.
Robert Piconi, co-founder and CEO of Power Vault, experiences a “very constructive” response in China and says that Atlas plans as much as 6 GWh of Power Vault gravity storage there. The Swiss enterprise is constructing an 18 MW/36 MWh system in Texas, with Italian vitality firm Enel Inexperienced Energy, which is anticipated on-line in the summertime.
“I believe gravity [batteries] has a larger position for the longer-term market,” stated Piconi, though “there should not many gravity vitality storage corporations available in the market that manufacture at scale. There are 4 or 5 different gravity corporations however none have superior with the primary seed or government-provided funding. So there’s a variety of work to do. “
Cost in depth
Gravitricity in Scotland is underground. Its GraviStore system desires to make use of ex-mine shafts for block-based storage. Gravitricity suggests the usage of “MagnaDense,” a high-density mixture materials that may be a confirmed ballast within the trade.
Peak and weight are the one variables in a gravity battery, says Gravitricity Business Director Robin Lane. “If you wish to generate, retailer, and return attention-grabbing quantities of electrical energy, you must take care of weights of a whole lot of tons, and you must throw the weights a major distance, most lower than 500 meters.”
The one cost-effective reply, Lane argued, was exploiting caves or disused mineshafts. “By holding it underground, we’re doing it cost-effectively, through the use of present infrastructure we’re doing it the appropriate means,” he stated. “There are a whole lot, if not hundreds of decommissioned mine shafts on this planet. Hotspots embrace South Africa, Australia, Chile, and Europe, he stated, including, “It is an excellent story, utilizing the outdated one [coal] vitality system for the brand new.”
Power Vault’s Terruzzin says such programs are sure by mine dimensions.

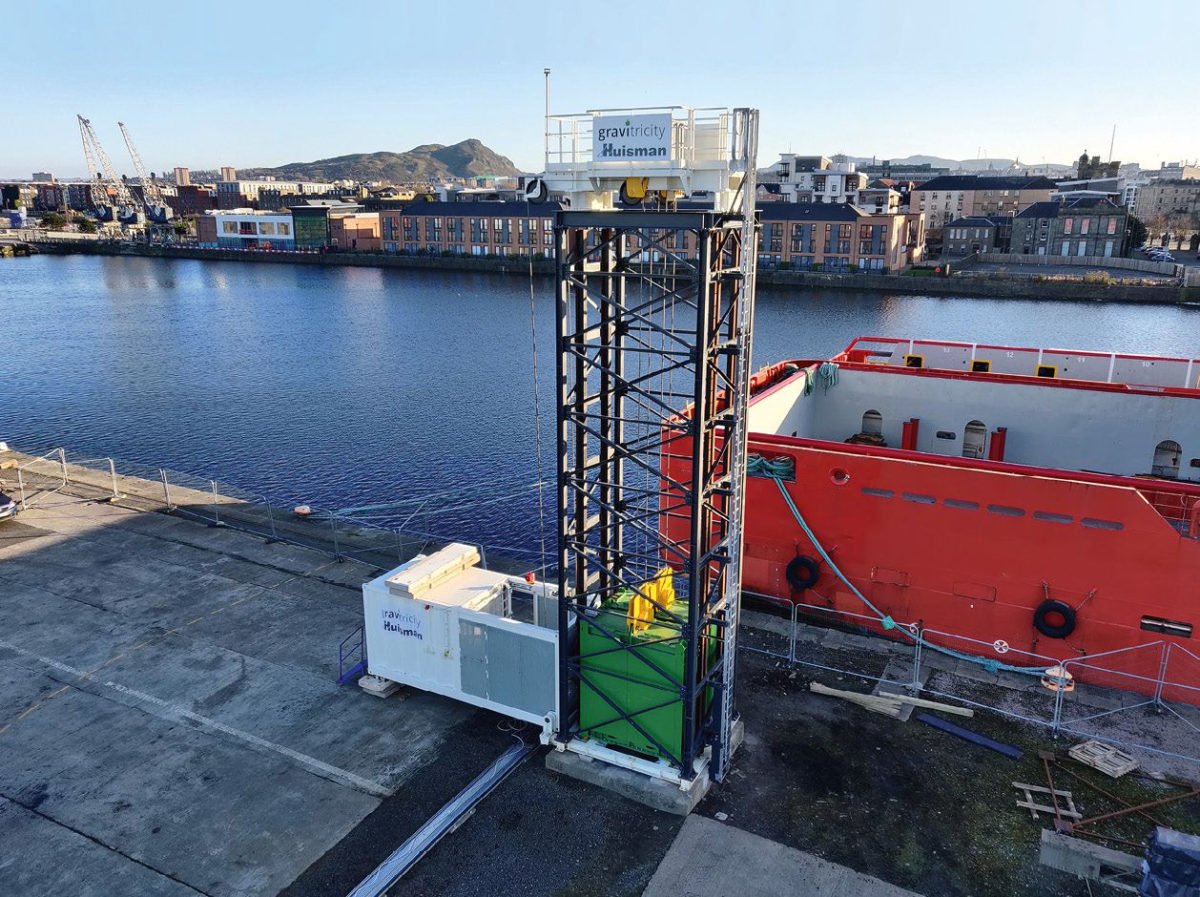

Gravitricity has demonstrated a 250 kW pilot in Edinburgh, with two 25-ton weights, and needs to construct a full-scale mine venture in Staříč within the Czechia. a UK demonstrator for underground hydrogen storage, with structural engineer VSL Programs UK.
The Power Vault, too, is various.
“Underground areas are extremely able to probably offering grid-scale vitality storage,” Lane stated. “We consider these capabilities are past gravity.” The Scottish enterprise’s H2 FlexiStore system entails digging steel-lined rock shafts close to renewables websites and industrial hydrogen customers to retailer as much as 1,000 tonnes of compressed gaseous hydrogen per shaft. Lane stated pv journal Storage of gravity shafts may additionally be doable.
US-based Gravity Energy proposes a gravity battery with a closed loop water-filled shaft the place a piston of strengthened stone is raised by pumped water after which lowered, pushing the water right into a penstock and thru a turbine.
Government Thomas Mason says the Gravity Energy Plant doesn’t require totally different elevation reservoirs or cables and winches. He says the extent price of storage for a 200 MW/1.6 GWh system producing for eight hours is lower than 1 / 4 of the 2020 determine for lithium-ion batteries.
Gravity Energy raised $10 million for a 1 MW demonstrator in a missile silo, with assist from Inflation Discount Act incentives. “It’ll reveal the general idea and supply useful knowledge from operational testing,” Mason stated.
South African scientists final month proposed a gravity battery that mixes the concepts of Gravity Energy and Gravitricity. Researchers at Stellenbosch College have proposed a linear electrical machine system in disused mines, the place the machines vertically transfer stable plenty or pistons. Stellenbosch researcher Morris Mugyema says that “the vitality capability of a whole system is elevated by including aspect shafts, which makes it versatile and simple so as to add extra capability” .”
The hills are alive
UK-based RheEnergise maintains the rules of pumped hydro with the Excessive-Density Hydro system however with a fluid 2.5 occasions denser than water.
Chief Innovation Officer – and professor of renewable vitality on the College of Exeter – Richard Cochrane says the corporate proposes “a closed-loop system,” with an “environmentally benign fluid.”
Cochrane stored the composition of the liquid secret however it was identified to be of frequent origin. “It is unbelievable what number of extra websites are opening up with increased density liquid so as a result of the liquid is 2.5 occasions denser, you should utilize a hill that is 2.5 occasions smaller,” he stated. .
The RheEnergise system additionally requires smaller pipes and generators and its measurement means it may be simply built-in into industrial, mining, and inhabitants facilities.
Cochrane says a Canadian demonstrator was successful and they’re now on the lookout for a UK website. Preliminary initiatives might be twinned with hilltop photo voltaic or wind farms that may profit from co-located storage. The professor stated the fluid utilized in principle may very well be denser with out changing into too viscous for the generators.
Australia’s Fortescue Future Power and UK-based Williams Superior Engineering’s “Infinity Prepare” gravity battery – highlighted within the November 2022 version of pv journal International – entails a 2.5 km iron ore practice utilizing gravity braking to load 70 MWh batteries because it travels down from Fortescue’s Pilbara mine to the docks. The batteries then have sufficient cost to get the practice transferring.
US-based Superior Rail Power Storage is exploring the same, smaller idea for driving heavy blocks uphill.
Because the vitality transition seems to speed up, the burden of anticipation for innovators within the gravity cupboard space is rising. Nonetheless, there’s nonetheless no clear challenger to pumped-hydro’s heavyweight crown.
