A global analysis staff has developed a brand new photo voltaic cell design. By utilizing a high absorber composed of methylammonium lead iodide (MAPbI3), a lead-halide perovskite, and a backside absorber composed of FA0.5MA0.5Pb0.5Sn0.5I3, a perovskite materials, the cell maximizes of sunshine absorption within the broad spectrum.
A global analysis staff has developed a brand new design for inverted all-perovskite bilayer photo voltaic cells. The design contains bilayer heterojunctions with totally different perovskite supplies, which permit for enhanced absorption in lots of areas of the sunshine spectrum.
They use it a high absorber primarily based on a sort of lead-halide perovskite generally known as methylammonium lead iodide (MAPbI3) and a backside absorber manufactured from a perovskite materials generally known as FA0.5M.A0.5Pb0.5Sn0.5I3. Each absorbers have vitality bandgaps of 1.55 eV and 1.25 eV, respectively.
Additionally utilized by researchers SCAPS-1D photo voltaic cell capability sFOR essentially the most halfwhich is a simulation software for thin-film photo voltaic cells developed by the College of Ghent in Belgium, to simulate a number of cell designs.
“By various the parameters of the absorber layer and the work-function of the contacts we have now proven higher efficiency for the proposed system,” the researchers stated. “Moreover, it has been described that the temperature of the cell performs an necessary function within the performance of this bilayer cell.”
They stated that the thickness of the 2 layers has a major impact on the efficiency of the bilayer cell and the thickness of the extensive bandgap absorber layer needs to be thinner than the slender bandgap.
“The most effective thickness for MAPbI3 and FA0.5M.A0.5Pb0.5Sn0.5I3 are 100 nm and 600 nm, respectively,” they stated.

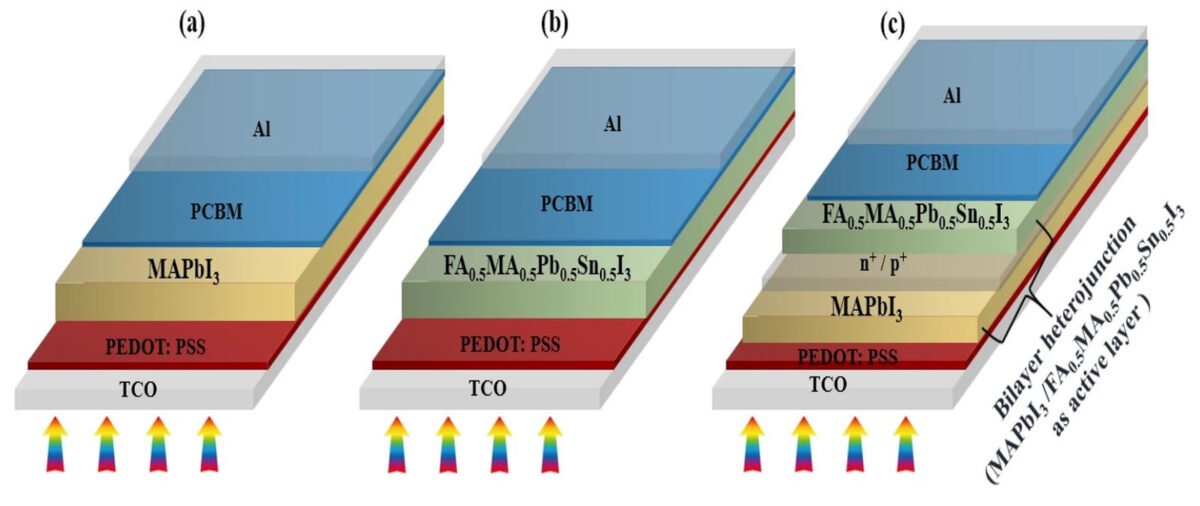

The scientists designed the photo voltaic cell with a substrate manufactured from fluorine-doped tin oxide (FTO), a hole-transporting materials (HTM) primarily based on PEDOT:PSS, the 2 absorbers, an electron acceptor manufactured from phenyl-C61-butyric acid methyl ester (PCBM), and a steel contact manufactured from aluminum (Al ).
By way of a collection of simulations performed underneath normal lighting situations, the analysis staff discovered that the cell can obtain an influence conversion effectivity of 24.83%, an open- circuit voltage of 0.9 V, a short-circuit present density of 34.76 mA / cm.2and a fill issue of 79.4%.
The scientists launched the brand new cell know-how in “Efficiency evaluation of a extremely environment friendly inverted all-perovskite bilayer photo voltaic cell,” just lately printed in Scientific studies. The analysis staff contains teachers from the College of Tabriz in Iran and Bilkent College in Turkey.
