German scientists have investigated the position of floor texturing in perovskite-silicon tandem cells and located that a number of new processes supply the power to etch smaller, extra uniform floor textures of a silicon cell than the present business normal. This can assist facilitate the following progress of a perovskite cell on high of silicon, enabling researchers and producers to focus on larger efficiency.
Scientists led by the Helmholtz-Zentrum Berlin (HZB) in Germany are investigating how work on the silicon cell floor can result in additional enhancements in perovskite-silicon tandem cell manufacturing.

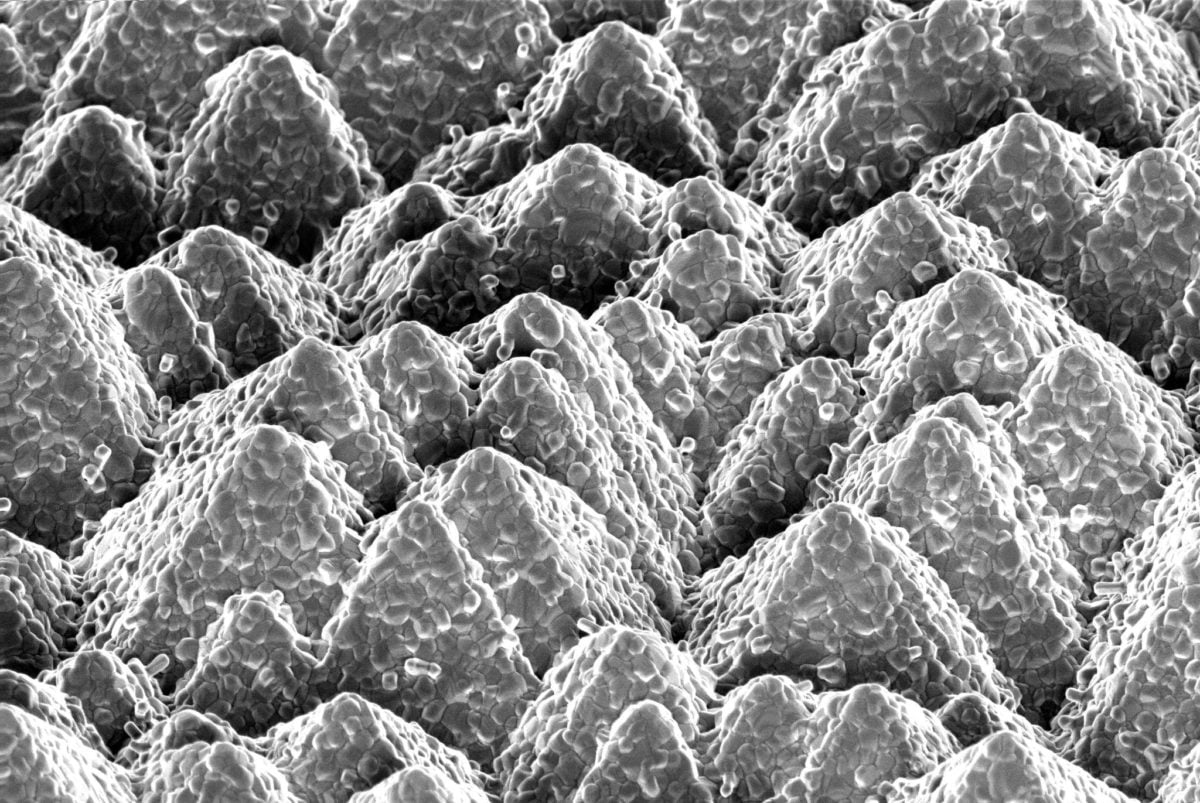

In silicon wafer and cell manufacturing, the floor of the wafer is normally textured with small pyramid shapes, which serve to cut back reflection and entice extra mild into the cell. This texture is normally achieved by dipping the wafers into liquid chemical substances, which take away a number of the silicon and depart a coated floor.
Different processes, normally involving firing a plasma substance onto the silicon floor, are identified to offer higher management over the dimensions and uniformity of the bumps that make up the feel. Most producers, nevertheless, see it as too sophisticated and costly, with restricted advantages in comparison with the moist chemical course of.
Putting a perovskite photo voltaic cell on high, nevertheless, provides new necessities for the silicon floor. A lot of the work accomplished up to now on tandem cells has been accomplished on a silicon cell with out texturing, which facilitates perovskite integration however represents a missed alternative for silicon cell effectivity. . The HZB staff investigated a number of the extra advanced texturing processes and located that the extra management and smaller floor textures they may afford would clear up the perovskite integration problem, and even the curiosity. once more for single-junction silicon cells.
“For tandem cells, a uniform and small-sized Si texture is important to moist the perovskite high cell course of,” the group defined. “We’ve got proven that sub-micrometer sized random pyramids by an adjusted moist etching course of is an attention-grabbing methodology not just for such tandem photo voltaic cells but in addition for SHJ single junction photo voltaic cells.”
Of their paper, Double-sided nano-textured surfaces for industrially suitable high-performance silicon heterojunction and perovskite/silicon tandem photo voltaic cells, revealed in Advances in Photovoltaics, the group described experiments with completely different etching options. They discovered that various the composition of the answer enabled them to manage the dimensions of the floor pyramids, sustaining the fascinating anti-reflective options of the etched floor, whereas making it simpler to putting the perovskite layer on high.
“All JV parameters are the identical or higher in comparison with cells with our normal micro-texture,” the staff stated.
Utilizing this new nano-texturing course of, the staff demonstrated a 28.9% environment friendly tandem cell. The researchers say they’re assured that such a course of might be adopted at scale.
“We anticipate that the offered processes might be simply applied in industrial manufacturing and, due to this fact, contribute to the event of a manufacturing course of for extra environment friendly tandem photo voltaic cells,” they stated.
