Chinese language researchers used metal-organic chemical vapor deposition (MOCVD) to supply a 12 cm2, five-junction photo voltaic cell with a small variety of mismatch dislocations. The cell has an open-circuit voltage of 4.727 V, a short-circuit present density of 860 mA/m2, and a fill issue of 86.38%.

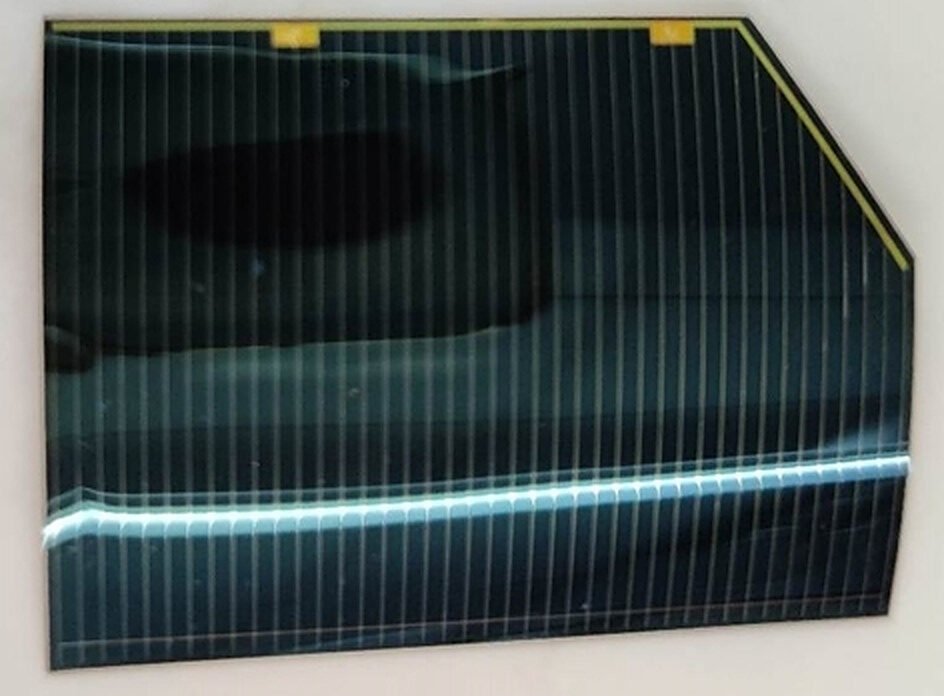

Scientists from the Chinese language Academy of Sciences (CAS) have efficiently developed a five-junction (5J) photo voltaic cell utilizing the inverted metamorphic (IMM) design. The cell consists of subcells product of aluminum gallium indium phosphide (AlGaInP), aluminum gallium arsenide (AlGaAs), gallium arsenide (GaAs), and indium gallium arsenide (InGaAs).
Junhua Lengthy, the corresponding writer of the analysis, expressed optimism concerning the business feasibility of the cell configuration. “We now have not but estimated the price of the cell, however its configuration could also be appropriate for business manufacturing,” he mentioned. pv journal.
Utilizing metal-organic chemical vapor deposition (MOCVD), the researchers produced a 12 cm2 system with an AlGaInP-AlGaAs-GaAs-InGaAs-InGaAs construction. Every subcell has a particular bandgap vitality, with values of two.0 eV, 1.67 eV, 1.42 eV, 1.18 eV, and 0.83 eV, respectively.
The scientists highlighted the cell floor with a root-mean-square roughness of 13.5 nm, which explains its significance in lowering dislocation slip obstacles and lowering defect density within the energetic area.
“So the decrease the epilayer floor roughness, the higher the standard of the mismatch development epilayer,” they mentioned.
To handle stress-related points, Chinese language researchers used low-temperature bonding methods, which successfully decreased stress-induced defects in epitaxial supplies. As well as, they utilized an anti-reflective coating (ARC) composed of titanium oxide and aluminum oxide (TiOx/Al2O3) utilizing electron beam evaporation.
The 5J photo voltaic cell, evaluated beneath customary gentle circumstances, achieved excellent efficiency metrics. It recorded an influence conversion effectivity of 35.1%, an open circuit voltage of 4.727 V, a short-circuit present density of 860 mA/m2, and a filling issue of 86.38%.
The scientists attributed the excellent efficiency of the large-sized 5J photo voltaic cell to the low variety of dislocations within the materials and the simplicity of the method of constructing the versatile system.
They launched the photo voltaic cell in “The fabrication of versatile and large-size inverted metamorphic five-junction photo voltaic cells,” which was lately revealed in Advances in Photovoltaics. The group consists of teachers from College of Science and Expertise of China and Chinese language firm Tianjin San’an Optoelectronics.
“The profitable manufacturing of huge dimension versatile 5J IMM photo voltaic cells not solely emphasizing THE as well as development on THE photoelectric conversion effectivity of multi-junction photo voltaic cells however can also additional broaden the doable software,” they concluded.
