Chinese language module producer Hanersun has launched six variations of its new stackable, high-voltage residential batteries, from nominal capacities from 7.5 kWh to twenty kWh. The batteries, with lithium-iron phosphate (LFP) expertise, have a five-year guarantee.

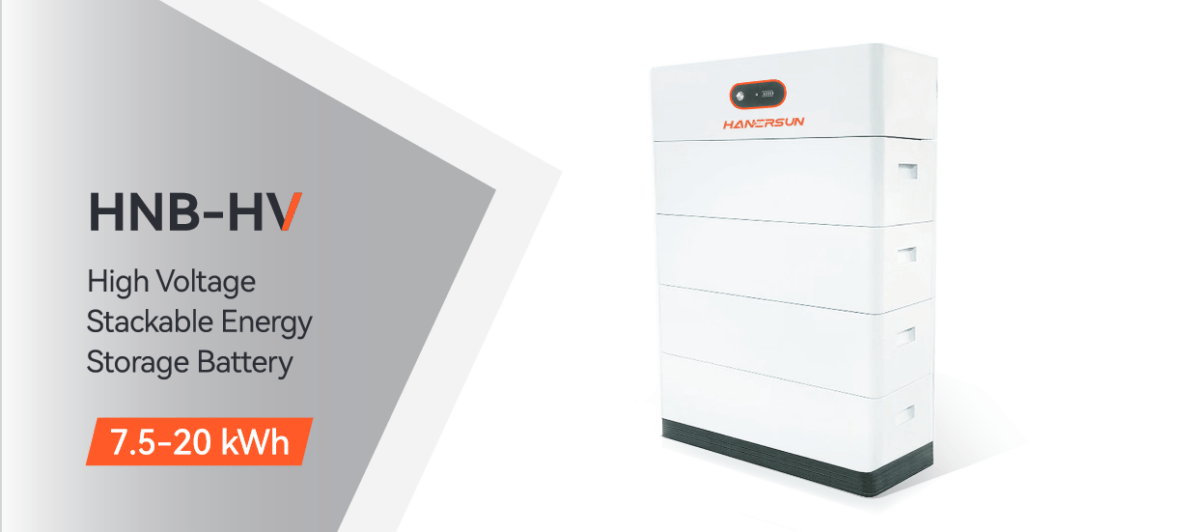

Hanersun unveiled a brand new high-voltage battery for residential and industrial purposes at this week’s SNEC commerce present in Shanghai, China. It has lithium-iron phosphate (LFP) cell expertise.

The Chinese language module producer gives the brand new merchandise in six variations, with a nominal capability of seven.488 kWh, 9.984 kWh, 12.48 kWh, 14.976 kWh, 17.472 kWh, and 19,968 kWh. The smallest machine measures 606 mm x 220 mm x 730 mm and weighs 80 kg. It has a nominal voltage of 144 V and a voltage vary of 114.7 V to 159.7 V

The most important battery measures 606 mm x 220 mm x 1,580 mm and weighs 199.5 kg. It has a nominal voltage of 384 V and a voltage vary of 306 to 426 V. All six fashions have a capability of 52 Ah.

The HNB-HV sequence is IP65-rated and comes with a five-year guarantee. The batteries are reported to have a lifecycle of greater than 6,000 cycles. The stackable, plug-and-play design supposedly permits for simple set up, with every battery module weighing 25 kg. Hanersun additionally claims that the batteries are totally recyclable on the finish of life.

The corporate additionally unveiled a low-voltage battery storage system at SNEC, with nominal capacities between 2.66 kWh and 10.44 kWh. The HNB-LV sequence is obtainable in three variations, all that includes LFP expertise. They’ve a voltage of 51.2 V and a charging voltage of 57.6 V. The batteries might be wall- or floor-mounted and weigh between 31 kg and 96 kg.
